Leak Test Application from TQC

V8 Engine Block Leak Test Machine - Series 40 Based System

TQC have recently supplied a leak testing solution for leak testing Cylinder Heads. The machine is capable of leak testing both left hand and right hand variants via a simple base tool change, the machine control system ensures the correct tooling is used for all loaded parts.

The system is based on the TQC Series 40 range, a proven range standard leak testing solutions designed and manufactured by TQC.

Leak Test Machine
Part Tooling

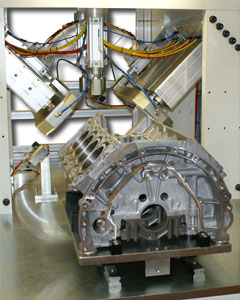

Part ready for test

Integral Leak Test Instrument

The Unit Incorporates : Leak Test Description:
  • Transfer carriage with load/unload position and test position
  • Pneumatic clamping of test part
  • Automatic test connection
  • Pass marker
  • Light Guard Access
  • Built in Furness Controls FC0730 leak test instrument
  • PLC control system & colour touch screen HMI
  • Single Cavity Leak Test - Water Jacket - 10cc/min @ 2bar
  • Cycle time 50 seconds

The Series 40 range of equipment can be configured for either over-pressure, vacuum or dosing applications. There are also a range of options available to suit each specific requirement. If you are currently considering a leak test application contact TQC to discuss your requirements
